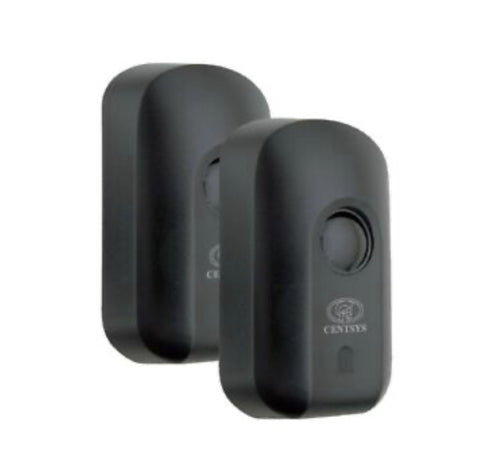

CENTSYS i5 Infrared Gate Safety Beams
Description
- i5 gate safety PE beams from CENTSYS are simple to align, extremely reliable and boasts an operating range of up to 40m.
- It can be used on gates, garage doors, and even for simple perimeter protection.
Main Features
- Wide infrared beam makes for supremely easy beam alignment – no more battling onsite.
- Highly cost-effective detection solution.
- Easy commissioning thanks to LED indicators.
- 40 metre range – suitable for even the widest of entrances.
- Compatible with Intruder-detection Alarm functionality (a world first) – greatly improves security.
- Wide input voltage range.
i5 Infrared Gate Safety PE Beams Technical Date
- Power Supply - 12 - 24V DC/AC
- Power Consumption Transmitter - 21mA
- Receiver - 43mA @ 12V
- Maximum Distance - 40m
- Alignment - Automatic - 9m² @ 10m (parallel - circular area)
- Output Contact Rating - 5A @ 220V AC (non-inductive)
- Operating Temperature - -15°C to +55°C
- Operating Humidity - 0% - 90% (non-condensing)
- Degree of Protection - IP54
